Bulldozer

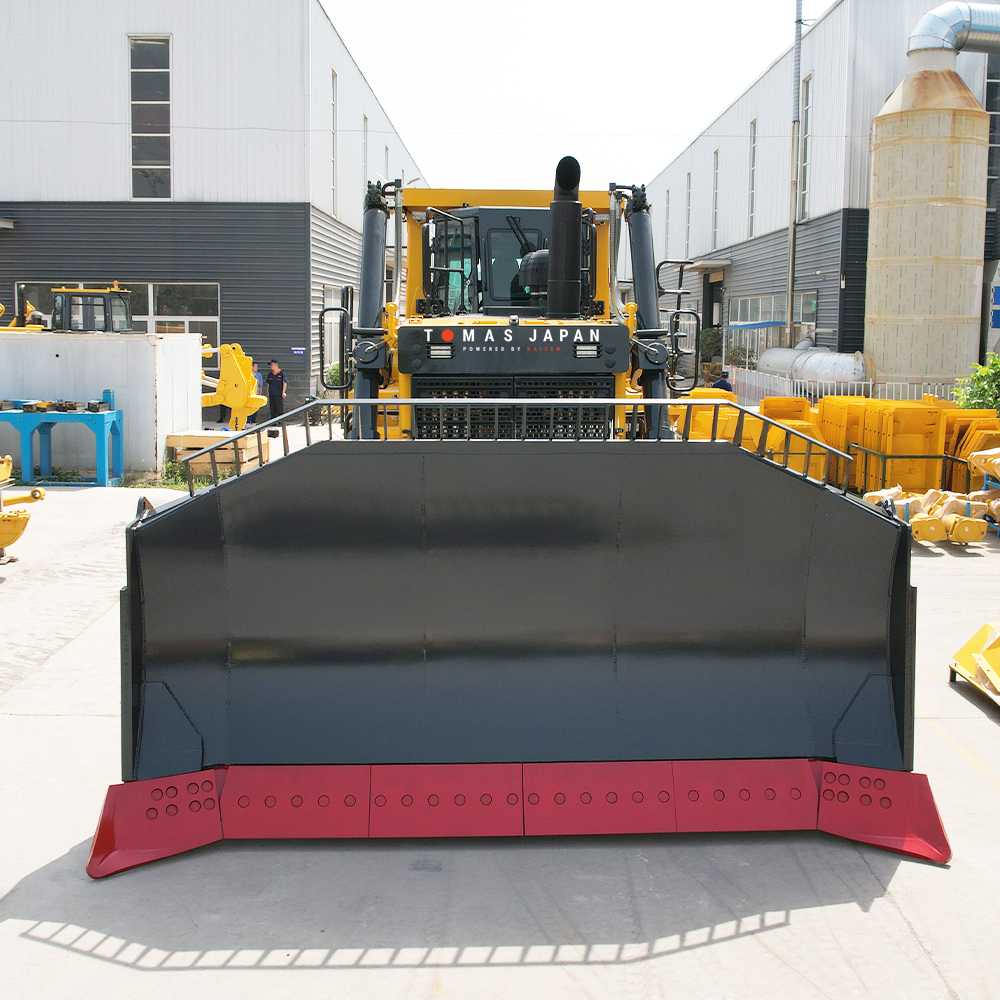

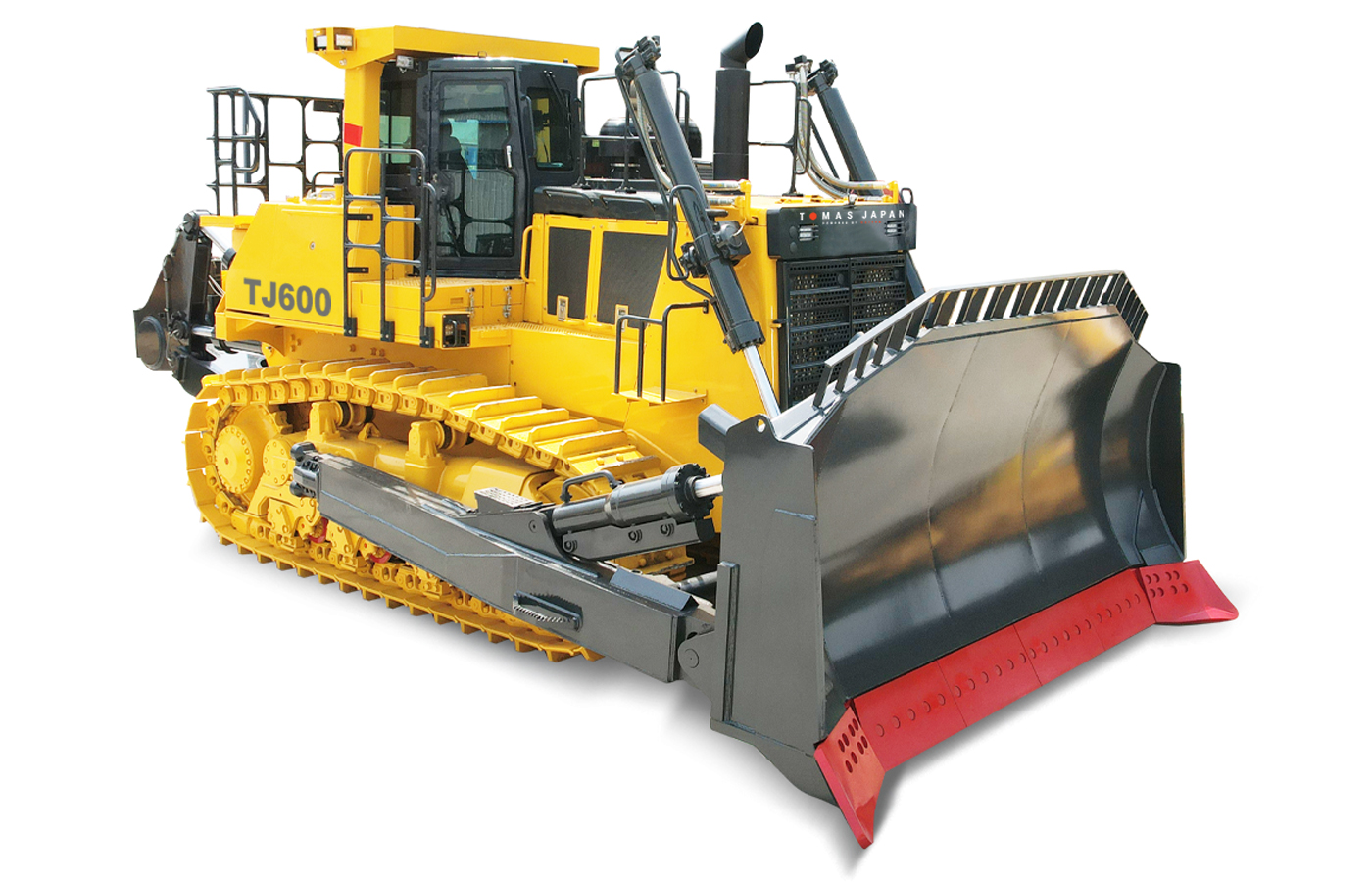

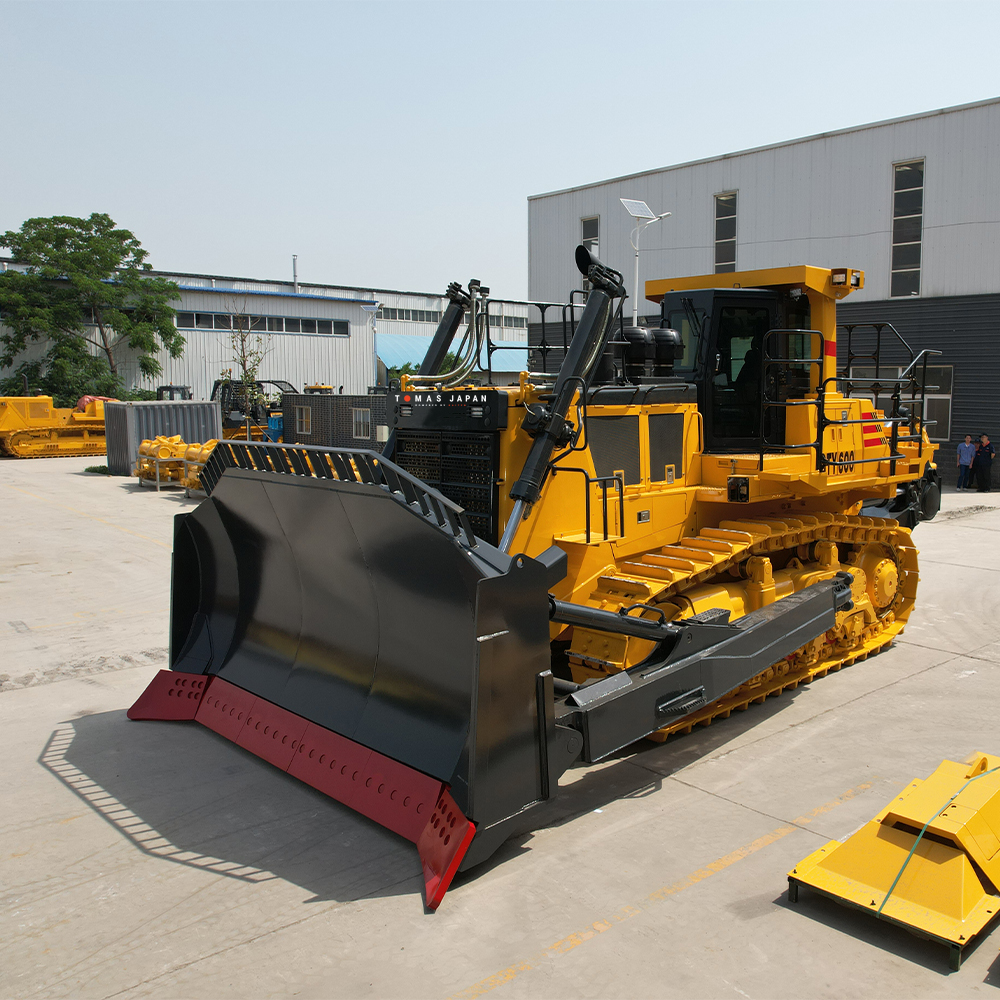

HIGH PERFORMANCE 600-HP MINING CRAWLER BULLDOZER WITH PARKER HYDRAULICS
Today, we proudly introduce our latest product: the 600-horsepower bulldozer.
It boasts a powerful 612 horsepower engine, a 70-ton operating weight, and core hydraulic components from Parker.
It features a 360-degree panoramic view, flexible pilot control, excellent maneuverability, and a luxurious cab that ensures driver comfort.
| Model | TJ600 |
| Engine Model | Cummins QSK19-C604 |
| Rated power | 450/1800 kw /r/min |
| Max.torque | 3019/1300 (N.m/rpm) |
| Operating weight | 66.7 Ton |
| Dimension(no ripper) | 7650*4700*4530 (mm) |
| Grounding length | 3850 (mm) |
| Ground pressure | 0.1465(MPa) |
| Blade capacity | 18.5m3 |
| Bulldozer shovel (WxH) | 4700 × 2350mm |
| Blade max lifting height | 1660mm |
| Blade max digging depth | 715mm |
