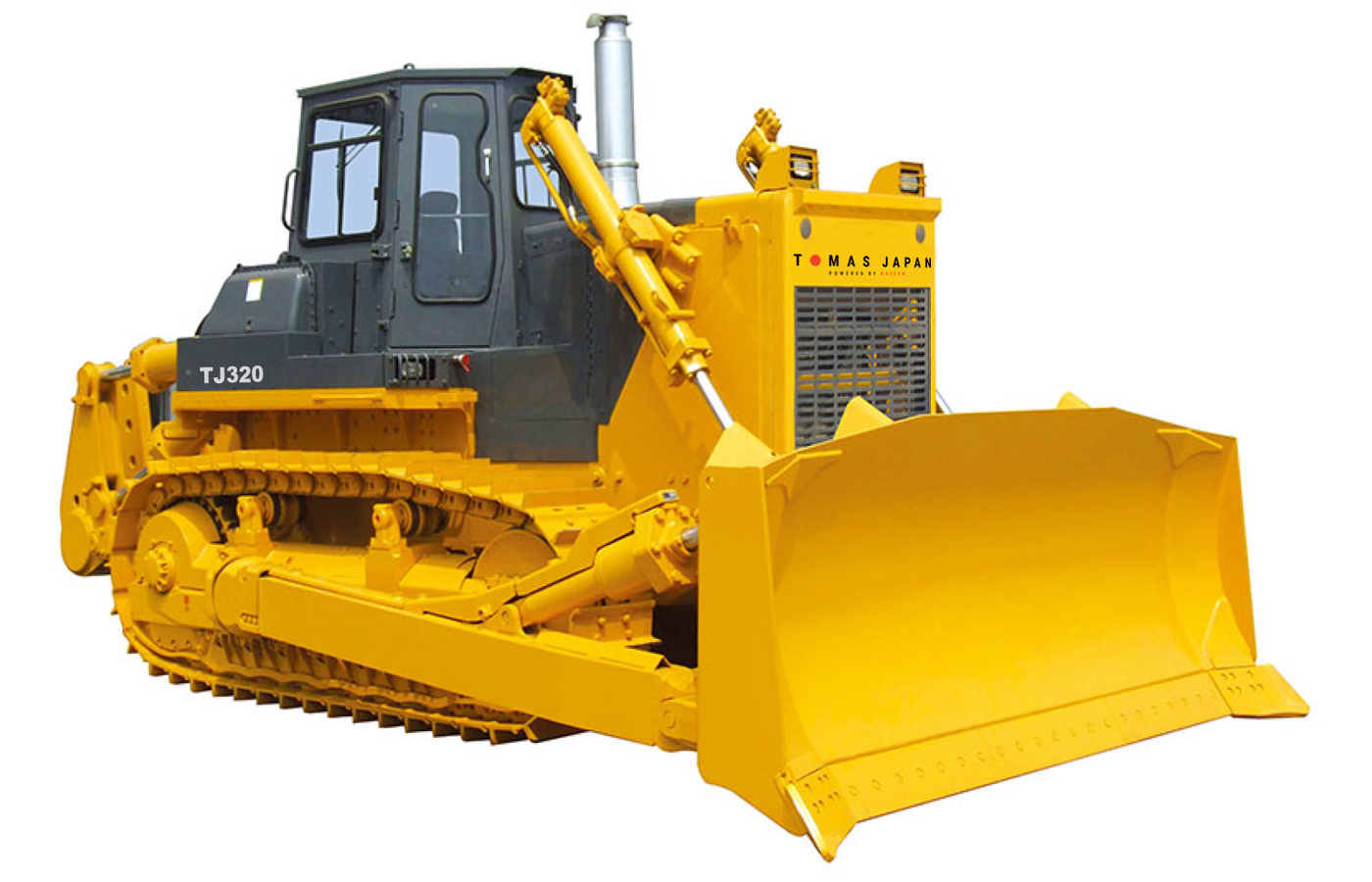

Bulldozer
- The appearance of the vehicle is based on optimization design.
- Higher engine power reserves efficiency, bigger torque output, lower fuel consumption, while better reliability. Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting.
- 3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.

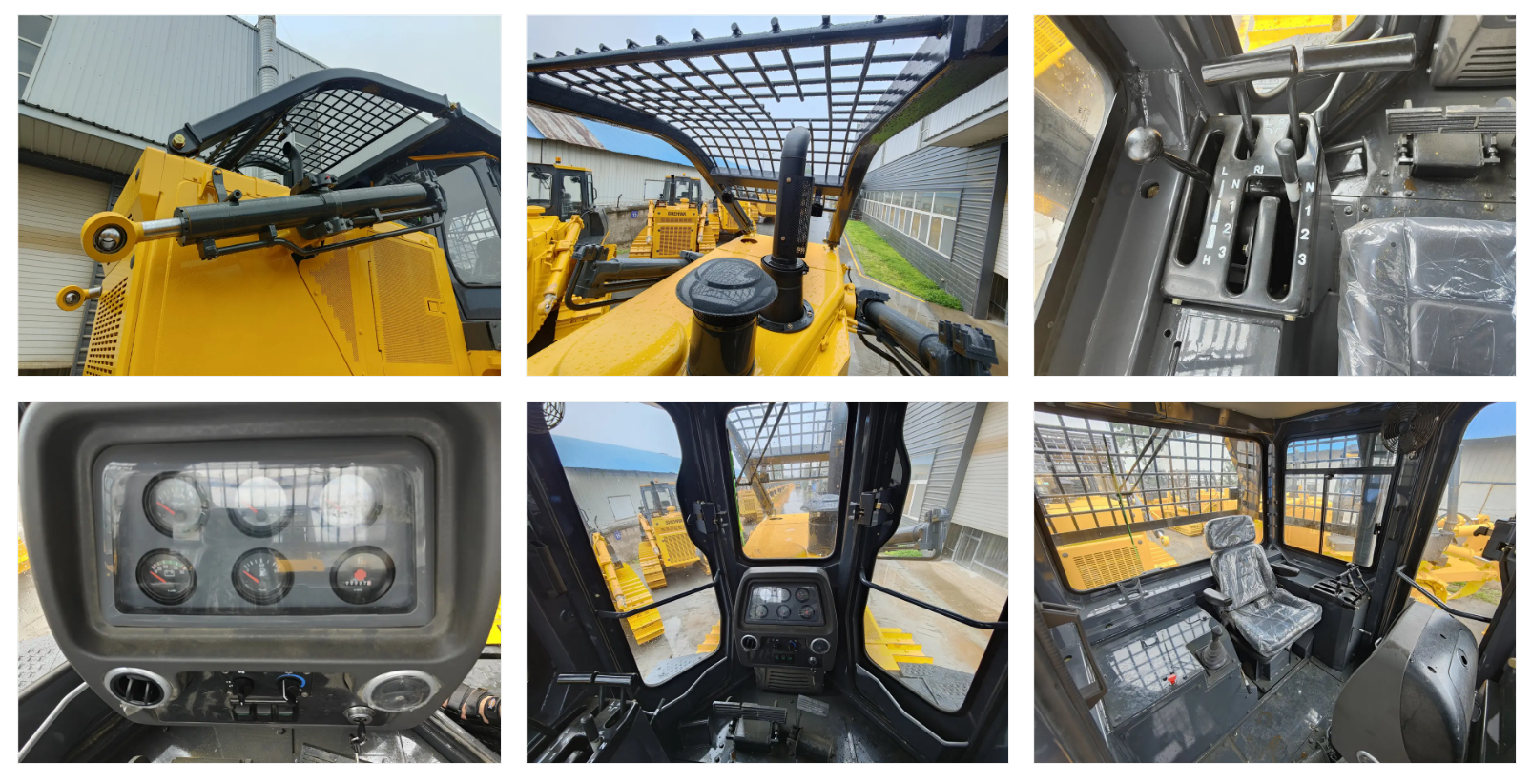

- The novel hexahedral cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
- The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power transmission and added life.
- New blade is more durable and capacious.
- Alarming monitoring system is efficient and reliable.
- Implement controls are piloted to minimize operating effort.
ENGINE
| Model | Cummins NTA855-C360S10 |
| Type | Turbocharged, aftercooled, Four-Stroke |
| Rated power | 257kW@2000rpm |
| Max. torque | 1440N.m@2000rpm |
| Number of cylinders-bore×stroke | 6-φ139.7×152.4mm |
| Starting method | Electric starting 24V11kw |
| Min fuel consemption ratio | 245g/kwh |
Pulse exhaust manifold for improving performance and emission. With a high torque reserve and a low speed under the maximum torque condition for a good adaptation.
High quality cast iron and special designed valve guide for the seal performance and durability.
Robust and precise balance design for crankshaft.
Advanced turbocharger and air-air after cooler technology.
4 valves per cylinder for high power and low fuel consumption.
This machine is equipped with transmission of planetary gear and rotary lockup multi-disc clutch.hydraulically engaged and force lubricated. Forward 3 speeds and reverse 3 speeds can be gained by actuating hydraulic controlvalve.
HYDRAULIC TORQUE CONVERTERTJ320 torque converter is of 3-element, 1-stage, 1-phase, centripetal turbine type with simple structure but good technology. It provides high power efficiency, great penetration, big capacity and less loss when the turbine idles.
TJ320 hydraulic torque converter is a newly developed product with the improvement made to the material, process and layout based on introduced Japan Komatsu technology. It features simple archite cture, easy maintenance, low noise, excellent reliability.
